CIM Issues #7289
Protection and Operational Mode Capabilities AssetInfo Extension
Status:
New
Priority:
High
Author/Contact Info:
Scott Coe
Base Release:
Solution to be Applied To:
Solution Version:
Solution Applied By:
Completion Date:
CIM Keywords:
61968-AssetInfo
Breaking Change:
No
Breaking Change Description:
CIM Impacted Groups:
WG14
Requestor:
Standard(s):
Version:
Clause:
Sub-Clause:
Paragraph:
Table:
Originally Closed in Version:
Origination Date:
Origination ID:
Currently Assigned To:
Description
Now that the core AssetInfo classes are complete for smart inverters (InverterInfo), the full set of IEEE 1547 capabilities need to be added. Important note: these are the CAPABILITIES of a given device and not the SETTING for that device. A SETTING must be within the range of the min/max CAPABILITY.
Files
Proposed Solution

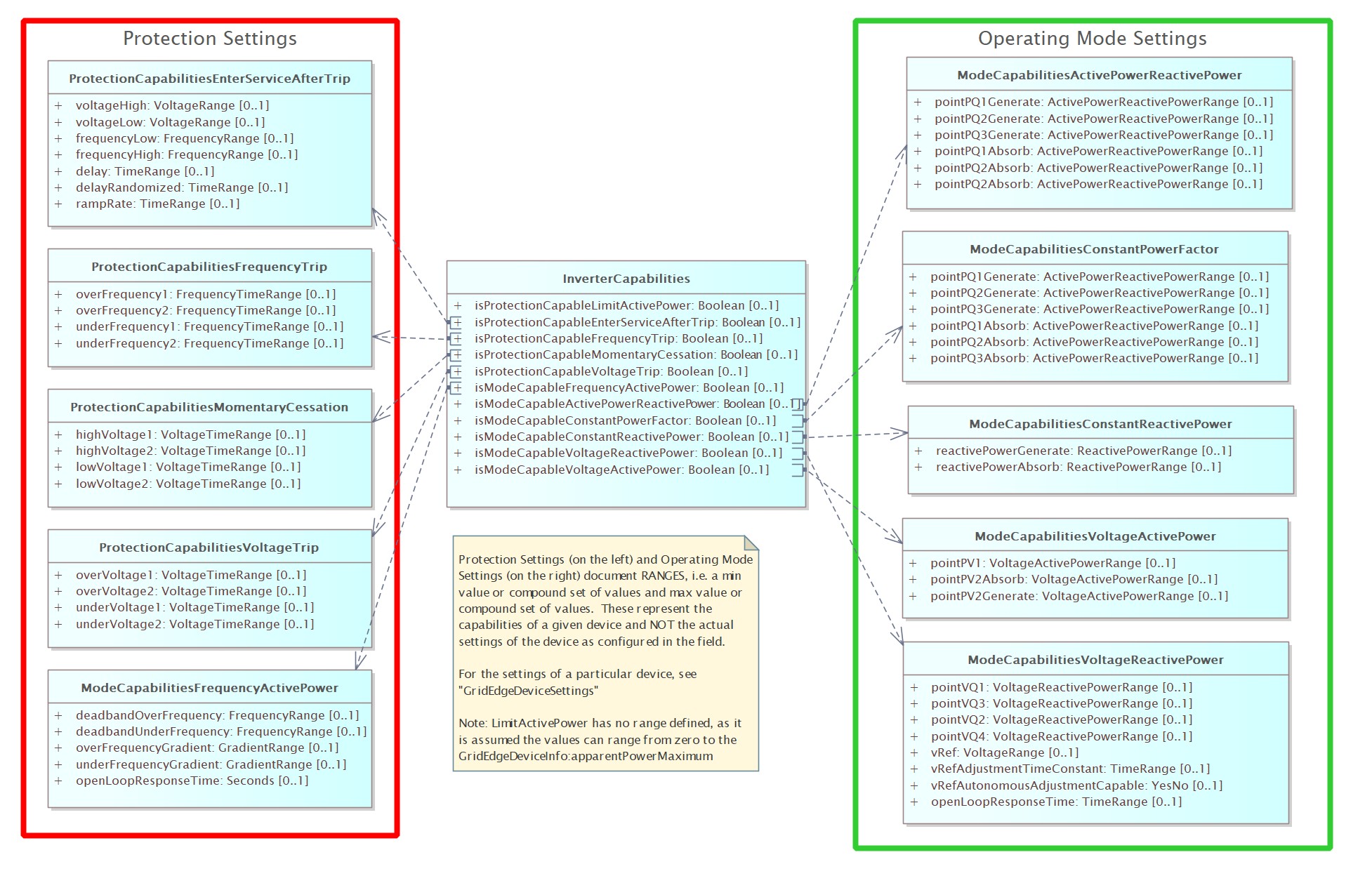

Add modelling as shown in the attached file.
No data to display
