CIM Issues #7132
InterrupterUnit has two associations with the name Bushing
Description
InterrupterUnit has two associations with the name Bushing (one is for MovingContact and another is for FixedContact).
This is not allowed per Modeling Rules and Reccomendations:
Association end names should be unique among all specialisations of a class. For example, if IdentifiedObject associates to the Name class with an end name of “Name”, no specialisation of IdentifiedObject may create another association whose end name is “Name” regardless of the class to which it associates. Note that any number of associations from other classes may use the same name (e.g. “IdentifiedObject”) as the association end name on the IdentifiedObject end of the association, as long as the prior rule of uniqueness among specializations is respected.
Files
Proposed Solution
Renaming Bushing
Decision
Rename both target role names to "MovingContactBushing" and "FixedContactBushing", respectively.
Release Notes
The two association role end names on the Bushing side of the associations between the Bushing and InterrupterUnit classes have been changed to "MovingContactBushing" and "FixedContactBushing", respectively.
Updated by Henry Dotson about 2 months ago
- CIM Keywords 61968-Assets added
Henry Dotson:
This CIM Issue is being assigned to the UTF14 Part 4 Team and will be moved to WG14 Part 4 Issues.
Updated by Shawn Hu about 2 months ago
After a discussion in the WG14 modelling team meeting on 5/6/2025, the proposed change is to rename both target role name to "MovingContactBushing" and "FixedContactBushing", respectively. Svein proposed to remove the "Contact" out of both role names to something like "MovingBushing" and "FixedBushing". This decision needs to be confirmed by the WG13 team (Todd?).
Updated by Henry Dotson about 1 month ago

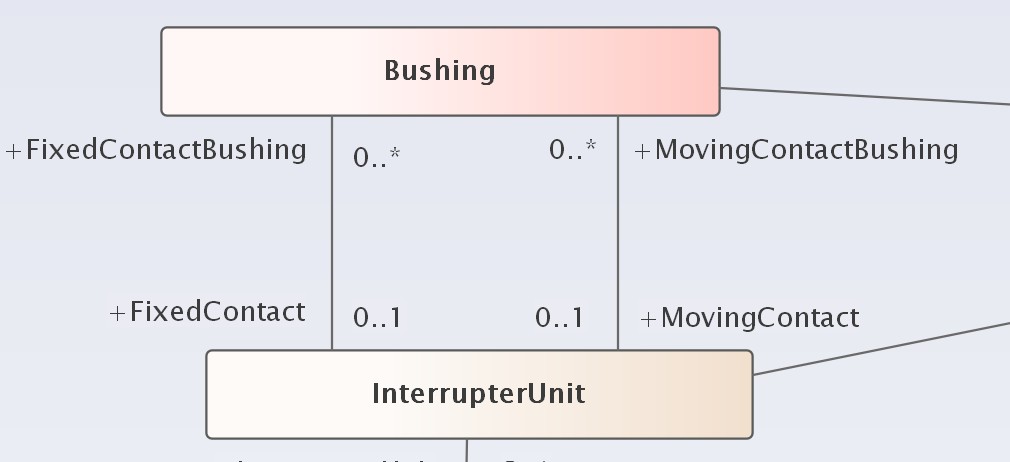

- File Bushing - InterrupterUnit.jpg Bushing - InterrupterUnit.jpg added
- Status changed from Review to Closed
- Solution to be Applied To set to CIM101
- Solution Version set to Enterprise14v04
- Solution Applied By set to Henry Dotson
- Completion Date set to 05/09/2025
- Breaking Change set to No
- Decision updated (diff)
- Release Notes updated (diff)
06-May-2025:
Received agreement from both the Part 4 Team Lead and the Submitter to rename both target role names to "MovingContactBushing" and "FixedContactBushing", respectively.
