CIM Issues #5247
Refactor Location
Status:
Review
Priority:
High
Author/Contact Info:
Jim Hosrtman / jim.horstman@strateture.com
Base Release:
CIM 101
Solution to be Applied To:
CIM 101
Solution Version:
Edition 4
Solution Applied By:
Completion Date:
CIM Keywords:
61968-Common
Breaking Change:
Yes
Breaking Change Description:
This change removes the association between Location and CoordinateSystem
CIM Impacted Groups:
WG14
Requestor:
Jim Horstman
Standard(s):
Version:
Clause:
Sub-Clause:
Paragraph:
Table:
Originally Closed in Version:
Origination Date:
Origination ID:
Originally Assigned To:
Description
Existing Location specification does not meet needs of Part 6 (e.g. cadastre information, need for multiple sets of position points with different coordinate systems, shape represenation) (19)
Proposed Solution

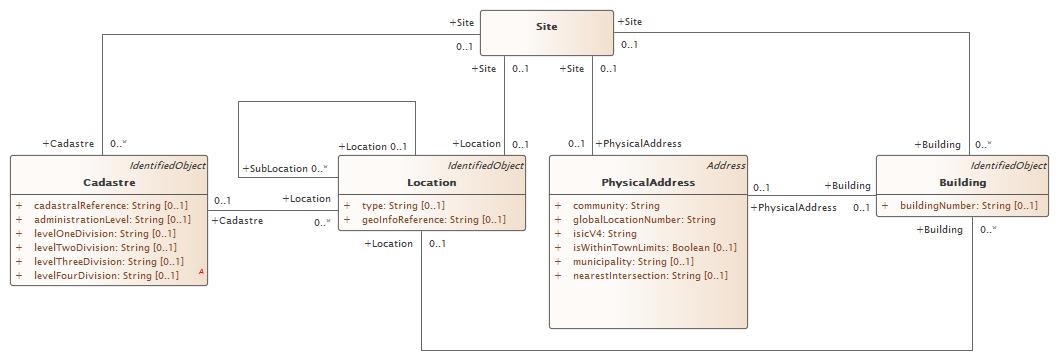

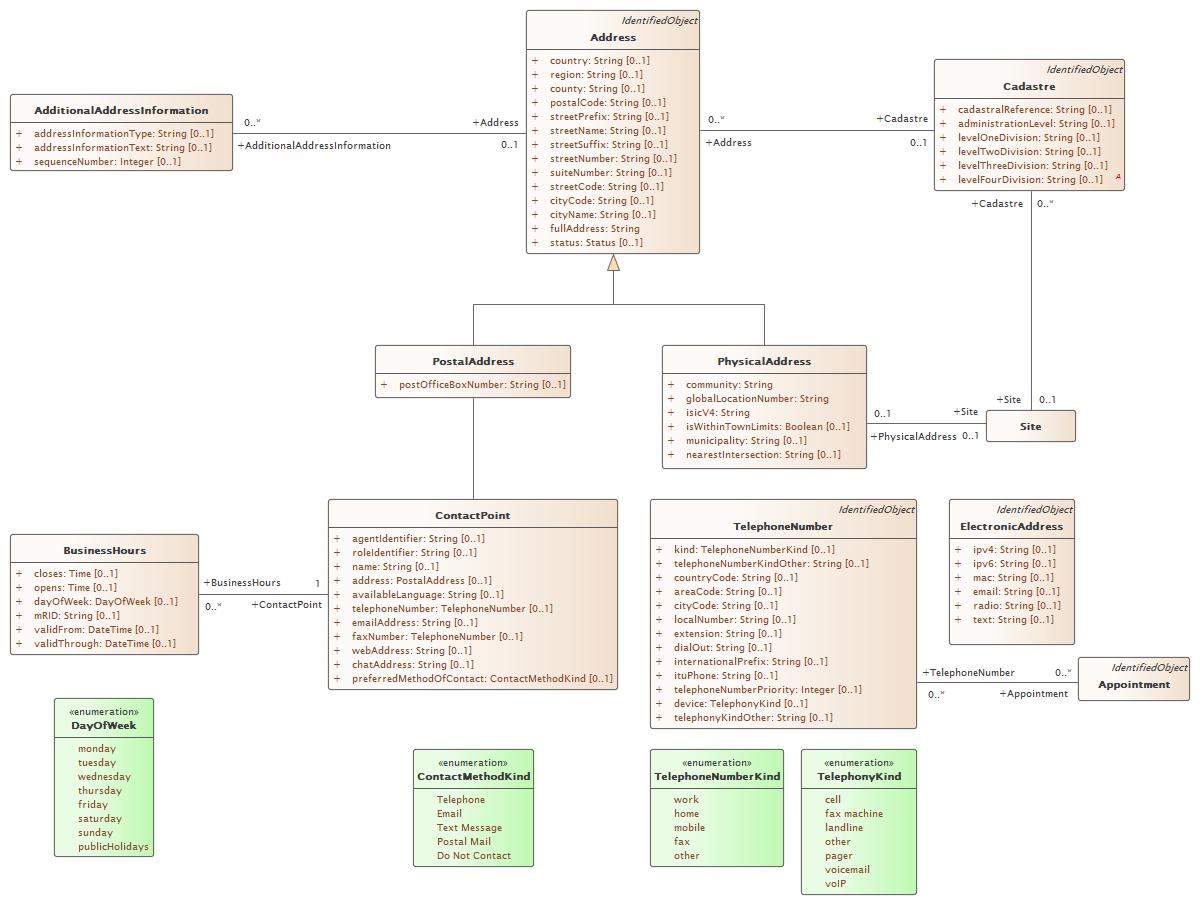

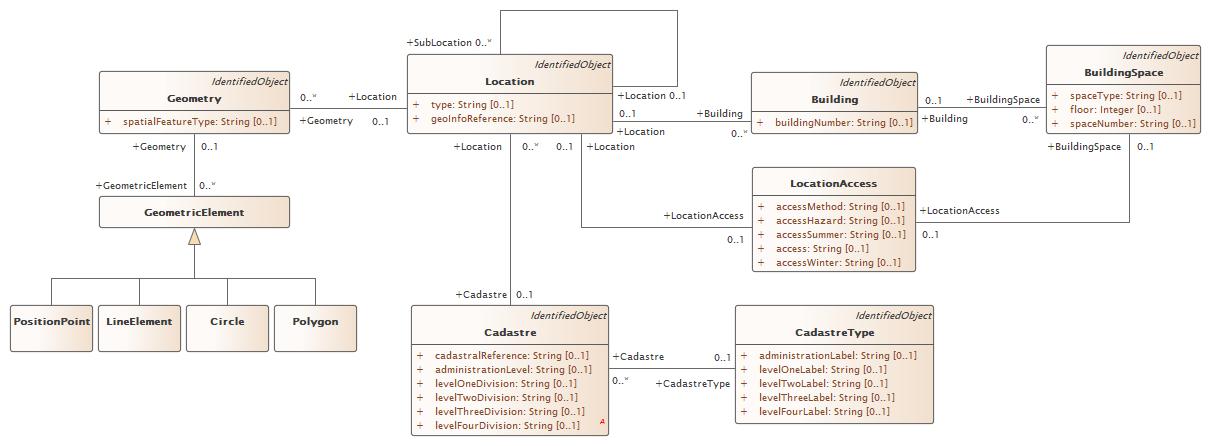

Refactor Location to add additional classes and associations. Note relates to removal of compounds
Updated by Henry Dotson 6 months ago
- Project changed from WG14 Issues to WG14 Part 11 Issues
- Status changed from New to Open
- Author/Contact Info set to Jim Hosrtman / jim.horstman@strateture.com
- Base Release set to CIM 101
- Solution to be Applied To set to CIM 101
- Solution Version set to Edition 4
- CIM Keywords 61968-Common added
- CIM Impacted Groups WG14 added
- CIM Impacted Groups deleted (
WG13)
Updated by Henry Dotson 6 months ago
- Status changed from Open to Review
- Breaking Change changed from No to Yes
- Breaking Change Description set to This change removes the association between Location and CoordinateSystem
